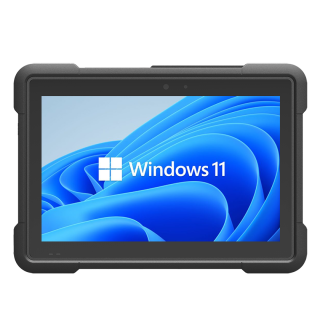

Partner Tech M10 PCAP - 10.1" Intel® Alder Lake N200 - 8 GIG DDR - eMMC 128GB, MSR, Hand Strap, Battery
Partner Tech M10 PCAP - 10.1" Intel® Alder Lake N200 - 8 GIG DDR - eMMC 128GB, MSR, Hand Strap, Battery
SKU:UM10010100320
Couldn't load pickup availability
● Intel® Alder Lake N200
● Windows 10/11 loT Enterprise and Linux
● Ultra bright display for outdoor use (350 or 800 nits)

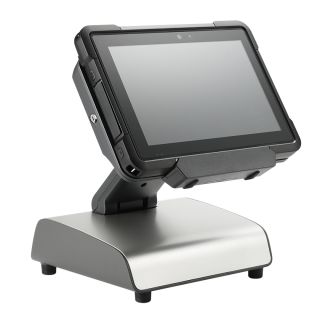

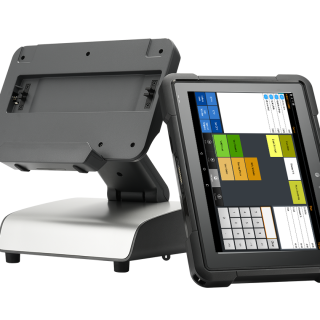

● Use for mobile POS or fixed POS in countertop stand
● Built-in, rotatable 2D barcode scanner

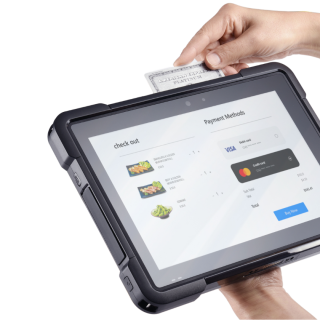

● MSR, EMV and contactless payment options
● High-speed Wi-Fi 6 and 5G
● Rugged design with IP54-rating
Operating System: Windows 11 IoT Enterprise LTSC (64bit)
Windows 10 IoT Enterprise LTSC 21H2 (64bit)
Linux (Ubuntu 22.04)
Size: 10.1"
Aspect ratio: 16:10
Brightness/Resolution: 350 nits at 800 x 1280 or 800 nits at 800 x 1280 (option)
I/O Ports:
1 x Type-A USB 3.0
1 x micro HDMI
1 x headphone + microphone
1 x DC jack
1 x micro SIM slot
WiFi: Wi-Fi 6E Intel AX210
| Bluetooth | BT 5.3 |
| Buttons | 1 x power button 2 x function keys |
| Sensor | Built-in G-sensor |
| Audio | 2 x speakers (2 x 1W) |
| Camera (option) | Front camera: 5 MP FF (ambient light) Rear camera: 8 MP AF |
| Battery | Main battery: 7.4V/4600mAh Hot swappable battery 3.8V/250 mmAh |
| Power Supply | AC-In 100~240V I DC-Out 12V, 36W |
| IP-rating | IP65 (without MSR/EMV reader/barcode reader) IP54 (with MSR/EMV reader/barcode reader) |
| Drop Specification | 3.2 ft/1 m |
| Dimensions | 10.95 x 7.83 x 0.95 inch / 278 x 199 x 24.2 mm |
| Weight | 1.2 kg / 2.64 lb (including battery) |
| Environment | System operating termperature: 32°~104°F / 0°C~40°C at 15% ~ 80% humidity Storage: -4°~140°F / -20°C~60°C at 5% ~ 95% humidity |
1 x micro SD card
1 x pogo pin connector
