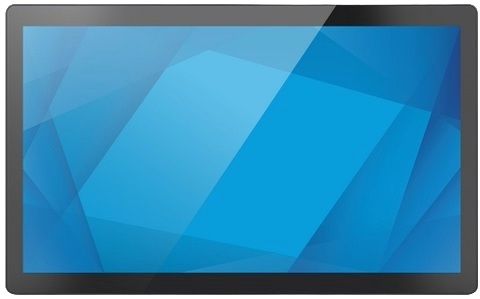

Elo KDS - i5, Win 10, 8GB RAM, 128GB SSD, Clear, Without Stand 23.8-inch I-Series 3 with Intel, Win 10, Full HD 1920 x1080 display, Core i5, 8GB RAM, 128GB SSD, Projected Capacitive 10-touch
Elo KDS - i5, Win 10, 8GB RAM, 128GB SSD, Clear, Without Stand 23.8-inch I-Series 3 with Intel, Win 10, Full HD 1920 x1080 display, Core i5, 8GB RAM, 128GB SSD, Projected Capacitive 10-touch
SKU:ELO-E608847
Regular price
$3,590.00 CAD
Regular price
Sale price
$3,590.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Processor | Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz) i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support |
| Graphics | Intel UHD Graphics For i5 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics. |
| BIOS | AMI |
| Memory (RAM) | Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots) NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit. i5: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots) NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit. |
| Storage | 128GB M.2 PCIe (NVMe) SSD 80 TBW GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. |
| TPM | 2.0 |
| Active Management Technology (AMT) | Celeron & i3: N/A i5: Intel Active Management Technology |
| Diagonal Size | 23.8'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 20.75" x 11.67" / 527.04 mm x 296.46 mm |
| Resolution | 1920 x 1080 @ 60Hz |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD panel: 250 nits TouchPro PCAP: 212.5 nits |
| Response Time-total (typical) | 16 msec |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| I/O Ports | 1x RJ45 LAN (Gigabit) Port 4x USB 3.0 Ports 4x Micro USB 2.0 Ports for Elo Edge Connect peripherals 1x RJ50 Powered Serial Port 1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out) 1x Audio Port (3.5 mm headset jack) |
| Wireless | 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz |
| Bluetooth | Bluetooth 5.3 |
| Speakers | 2 x 2W internal speakers |
| OS | No OS Windows 10 IoT Enterprise LTSC 64-bit |
| Languages | Windows 10 - 36 Language groups |
| Power Supply | External 24VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 180W |
| Power Consumption (Typical) | On Celeron: 40W On i3: 52W On i5: 56W Sleep: < 5W Off: < 0.5W |
| Dimensions | 22.49" x 13.86" x 1.54" / 571.2 mm x 352.0 mm x 39.0 mm |
| Shipping Box Dimensions | 27.4" x 20.8" x 7.4" / 697 mm x 529 mm x 188 mm |
| Weight (Unpackaged) | 14.8 lbs / 6.7 kg |
| Weight (Packaged) | 19.84 lbs / 9 kg |
| Operating Temperature | 0°C to 35°C / 32°F to 95°F Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance. |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80% Storage: 5% to 95% (38.7°C max wet bulb temperature) |
| Energy Star | Energy Star 8.0 certified configurations available |
| Regulatory approvals and declarations | Canada cUL, IC United States UL, FCC Germany TUV Europe CE Australia RCM United Kingdom UKCA International CB Argentina S-Mark Brazil ANATEL Japan VCCI, MIC China CCC, SRRC Mexico NOM RoHS CoC |
| Real-Time Clock | CR2450 lithium metal battery |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | 100mm VESA mount |
| Warranty | 3-year |
| Sealability | Touchscreen sealed to sub-bezel Touchscreen sealed to LCD |
| Power Cables | North American and European power cables included |
| Other Features | Serviceable internal components Kensington lock |
| What's in the Box | I-Series North America Power Cord European Power Cord Power Adapter – 180W Cable RJ-50 to DB-9 Quick Installation Guide (QIG) Cable tie VESA mounting screw |
| Upgrade Options | 8GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466053 16GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466237 32GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466430 M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613 M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803 |
| Optional Peripherals | Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 Customer Display (2x20 VFD) – Elo P/N: E001003 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 3D Camera - Elo P/N: E134699 Webcam - Elo P/N: E201494 RFID - Elo P/N: E673037 Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719 Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780 |
| Stands, Mounts & Kits | Power Brick Kit, 24V 180W - Elo P/N: E845269 1002L - Elo P/N: E155834 1002L - Elo P/N: E324341 1302L - Elo P/N: E683595 Elo 2ft authorized USB-C cable - Elo P/N: E969524 Elo 6ft authorized USB-C cable – Elo P/N: E710364 |
