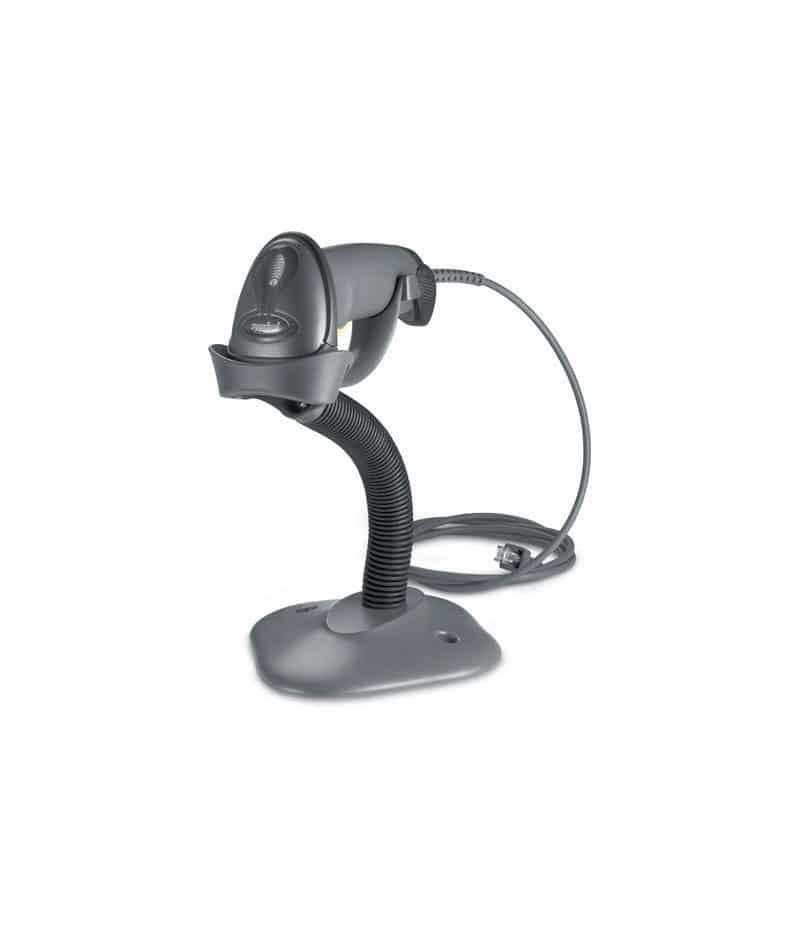

Motorola LS 2208-NA Scanner Kit (USB and Stand) - Color - Twilight Black or White Option

Motorola LS 2208-NA Scanner Kit (USB and Stand) - Color - Twilight Black or White Option

SKU:LS2208SR20007RNA

Regular price $220.00 CAD
Regular price Sale price $220.00 CAD
Sale Sold out
Shipping calculated at checkout.

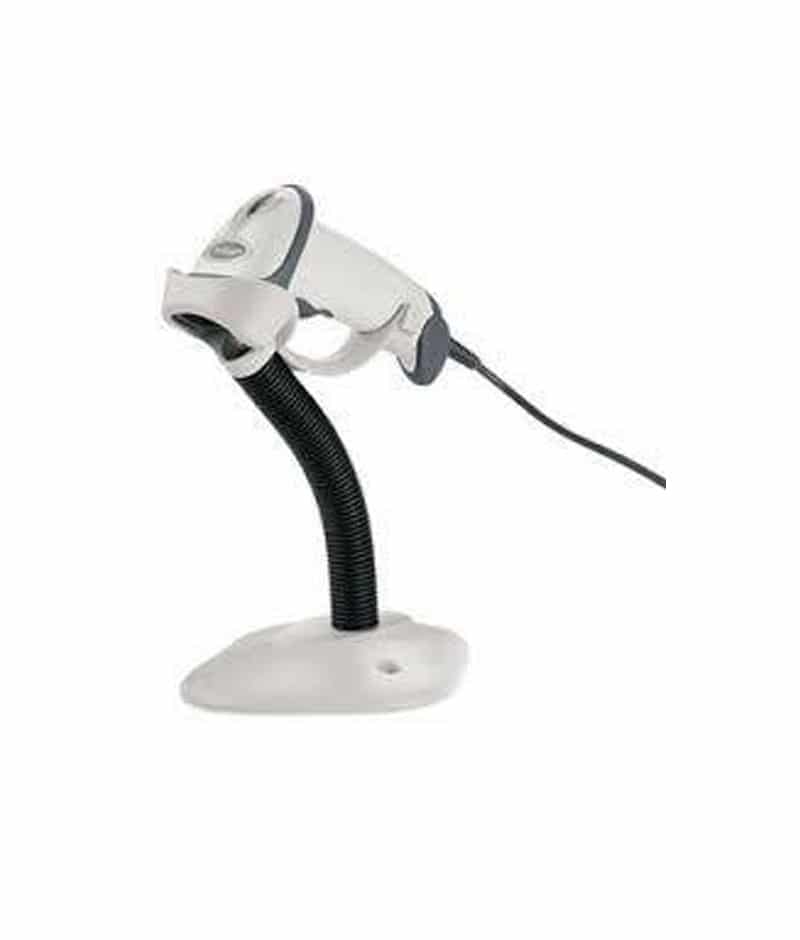

White Option
LS2208-SR, White with Stand USB KIT - NA ONLY: LS2208-SR20001NA Scanner, CBA-U01-S07ZAR USB Cable, 20-61019-01R Stand
Barcode
Barcodes: Codabar , Code 11 , Code 128 , Code 128 Full ASCII , Code 32 , Code 39 , Code 39 Full ASCII , Code 39 Trioptic , Code 93 , Discrete 2 of 5 , EAN/JAN-13 , EAN/JAN-8 , GS1 DataBar , IATA , Interleaved 2 of 5 , MSI-Plessey , UCC/EAN-128 , UPC
Features: Advanced Data Formatting (ADF) , Triggered
Interface: USB
Light Source Wave Length: 650 nm
Max Working Distance: 29.9 in
Minimum Bar Width: 5 mil
Pitch (Degrees): 65
Print Contrast Signal (PCS): 20%
Skew (Degrees): 60

Battery
Form Factor: None

Cable
Connectivity Details Type: USB cable

Environmental Parameters
Humidity Range Operating: 5 - 95%
Max Operating Temperature: 104 °F, 122 °F
Min Operating Temperature: 32 °F

Header
Brand: Symbol , Zebra
Compatibility: PC
Manufacturer: Symbol Technologies , Zebra Technologies
Model: LS2208
Packaged Quantity: 1
Product Line: Symbol , Zebra

Input Device
Connectivity Technology: Wired
Interface Type: USB
OK Notification: Beeper , LED indicator
TTL Decoding: Decoded

Interface Required
Total Qty: 1
Type: USB

Miscellaneous
Color: Black , Twilight black
Color Category: Black
Compliant Standards: CSA 22.2 No. 950 , EMC , EN 60950 , FCC Class B certified , FCC Part 15 B , ICES-003 , ICES-003 Class B , IEC950 , MITI , RoHS , UL 1950 , VCCI
Included Accessories: Stand

Power Device
Electric Current Required: 130 mA (typical)
Type: None

Scanner
Form Factor: Handheld
Scan Element Type: Visible laser diode
Scan Mode: Single-pass
Scan Speed: 100 scan / sec
Type: Barcode scanner

Service
Support Details Full Contract Period: 5 years
Support Details Type: Limited warranty

Slot Required
Type: None

Dimensions & Weight
Depth: 3.3 in
Height: 6 in
Weight: 0.32 lbs, 5.1 oz
Width: 2.5 in

Cable Details
Included Qty: 1

Service & Support
Type: 5 years warranty

Shock & Vibration Tolerance
Drop Specification: 5 ft to concrete
