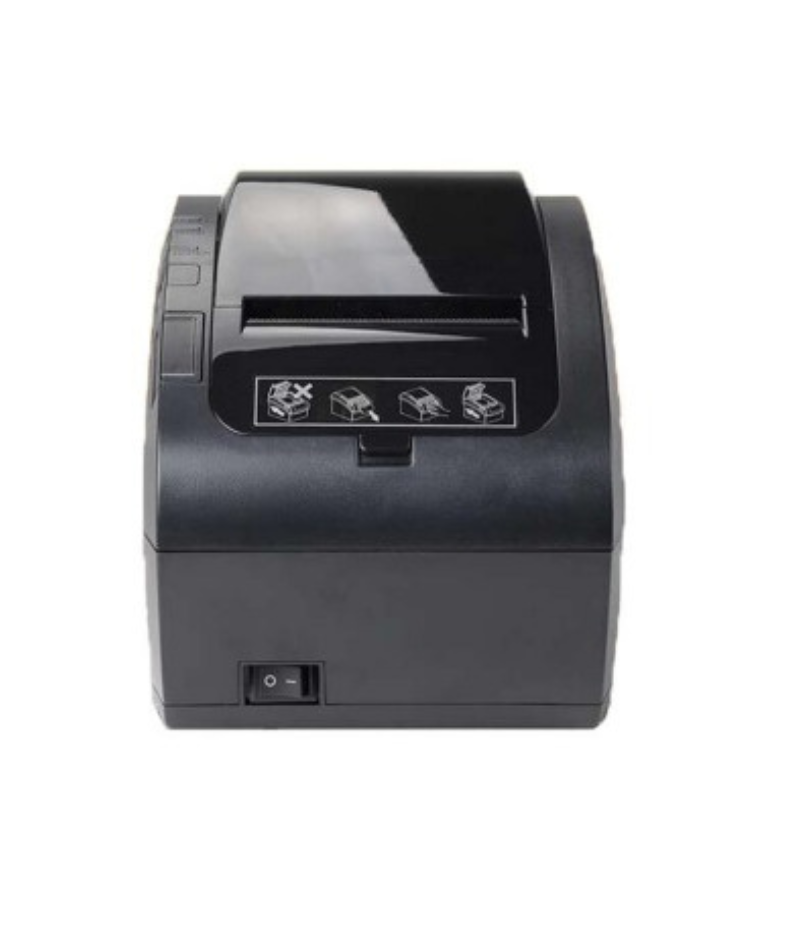

P13-USL-80mm Series 80mm Receipt - COST Effective - Thermal Printer - Serial+USB+Ethernet

P13-USL-80mm Series 80mm Receipt - COST Effective - Thermal Printer - Serial+USB+Ethernet

SKU:UP13-USL-80MM

Regular price $249.00 CAD
Regular price Sale price $249.00 CAD
Sale Sold out
Shipping calculated at checkout.

Main features:
• Fast printing of text and images
• Long lasting auto-cutter up to 1.5million cuts
• Friendly utilities, virtual usb or usb hid setting by utilities
• Supports 8 kinds of different paper width(Option)
• Supports wall mounting

Model -  U57CP-306WIFI


Printing

Print Method - Direct Thermal
Print Speed - 260mm/s
Resolution - 576dots/line or 572dots/line
Printing Width 72mm
Paper separator(option) - 48mm/52mm/56mm/64mm/68mm/76mm/80mm

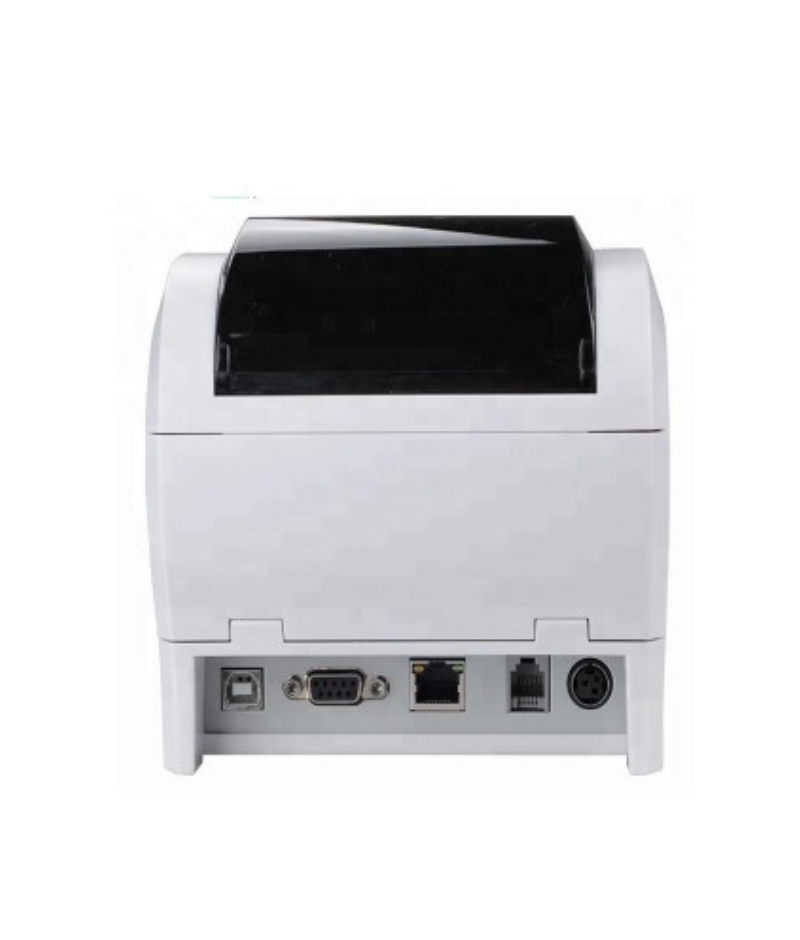

Interface - Options included : RS232C+USB+Lan+WiFi all 4 built in


Kitchen function

Power,Paper,Erro - Support
LED light with beeper -  Without
Hanging device-  Equipped


Memory
Input buffer- 256kbytes
NV Flash-  256kbytes


Fonts
Font A-  12x24
Font B-  9x17


Fonts
Chinese- GB18030,BIG5 24x24dots
Japanese/Korea-  Support
User-defined- Support


Barcode
1D- UPC-A/UPC-E/JAN13(EAN13)/JAN EAN8/CODE39/ITF/CODABAR/CODE93/CODE128
2D-  QR code


Detection

Sensors- Paper out, paper near end, cover open, cutter jam,paper jam
and black mark detection(Optional)


Power Supply
Input- AC 100V-240V 50/60HZ
Output-  DC 24V/2.5A


Paper
Paper Type- Thermal Receipt Paper
Paper Width-  48mm/52mm/56mm/64mm/68mm/76mm/80mm
Paper Thickness- 0.06~0.08mm
Roll Dia -  Max. Ø 83 mm
Paper Load- Easy paper loading
Paper Cut-  Manual tear or Auto-cutter(Full-cut or Partial-cut)


Physical Characteristics
Working Condition-  0°C~45°C, 10%~80%RH
Storage Condition-  -10°C-60°C,10%~90%RH
Dimensions-  191(D)x146(W)x12.9(H)mm
Net weight-  1.94kg Gross weight 2.14kg


Reliability
MCBF 60,000,000 lines
Printing head 150KM
cutter 1.5million


Accessories
data cable,power adaptor,power code,paper
roller,CD,manual,paper separator(option)


Packing
Individual box- Dimension 26X21X17cm(LXWXH)-  1unit/carton
Master carton- Dimension 64X28X36cm(LXWXH)- 12units/carton


OS
Emulation- ESC/POS
Driver - Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win
CE/OPOS/JPOS
SDK-  Android, IOS
