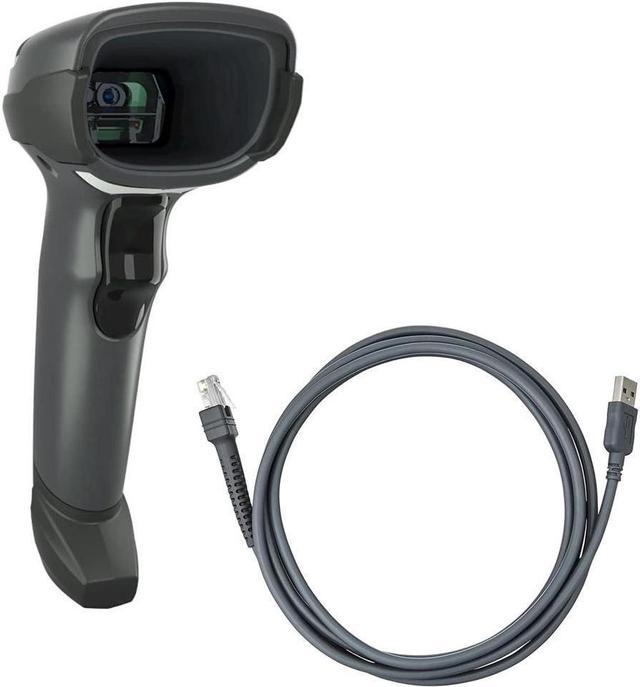

ZEBRA EVM, DS4608-HD, USB KIT: SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE, BLACK

DS4600 HD Series Specifications Ideal for these
applications
Retail front of store
• Checkout
scanning
• Mobile scanning:
eCouponing/
loyalty
• DL parsing: age
verification,
loyalty and credit
applications
• Cigarette and
liquor tax
verification
• Checkpoint EAS
• OCR/Passport
reading
Retail back of store
• Receiving
• Inventory
Hospitality
• Event/admission
ticketing
Quick Serve
Restaurants
• Drive-thru
zebra technologies 3
Regulatory
Environmental 2011/65/EU and EN 50581:2012 and EN IEC
63000:2018
Electrical Safety UL 60950-1, second edition, CAN/CSA-C22.2
No. 60950-1-07. EN 60950-1:2006/A2:2013
IEC 60950-1:2005/A2:2013
IEC 62368-1 (ed.2); EN 62368-1:2014
LED Safety IEC 62471:2006 (Ed.1.0); EN 62471:2008
EMI/RFI FCC: 47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B
EN 55032, Class B
EN 55024
EN 55035
EN 60601-1-2:2015, IEC 60601-1-2:2014
Accessories

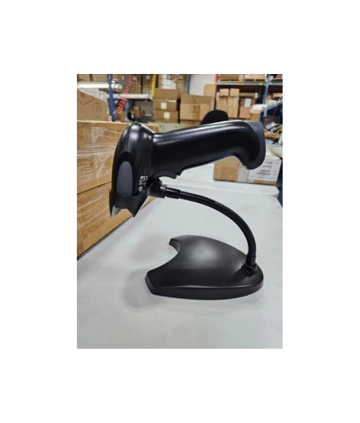

Gooseneck Intellistand, Cup
Symbol Decode Capability
1D Code 39, Code 128, Code 93, Codabar/NW7,
Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3
of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Micro PDF417, Composite Codes, TLC-39,
Aztec, DataMatrix, MaxiCode, QR Code, Micro QR,
Han Xin, Postal Codes, SecurPharm, DotCode,
Dotted DataMatrix
OCR OCR-A, OCR-B, MICR, US Currency
Refer to Product Reference Guide for complete list of symbologies.
Minimum Element
Resolution
Code 39 - 3.0 mil (DS4608-SR)
DataMatrix - 5.0 mil (DS4608-SR)
Code 39 - 2.0 mil (DS4608-HD)
DataMatrix - 4.0 mil (DS4608-HD)
DS4608-SR/DL Decode Ranges (Typical)1
Symbology/Resolution Near/Far
Code 39: 3 mil 2.2 in./5.6 cm to 5.4 in./13.7 cm
Code 39: 5 mil 0.7 in./1.8 cm to 11.0 in./27.9 cm
Code 39: 20 mil 0 in./0 cm to 44.0 in./111.8 cm
Code 128: 5 mil 2.7 in./6.9 cm to 5.4 in./13.7 cm
PDF 417: 6.7 mil 1.3 in./3.3 cm to 10.0 in./25.4 cm
UPC: 13 mil (100%) 0 in./0 cm to 28.0 in./71.1 cm
DataMatrix: 10 mil 1.0 in./2.5 cm to 11.5 in./29.2 cm
QR: 20 mil 0 in./0 cm to 17.5 in./44.5 cm
Physical Characteristics
Dimensions 6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.7 cm W x 9.8 cm D
Weight 5.7 oz. / 161.9 g
Input Voltage Range 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC
External Power Supply
Operating Current at
Nominal Voltage (5.0V)
340 mA (typical)
Standby Current (Idle)
at Nominal Voltage
(5.0V)
150 mA (typical)
Color Nova White, Twilight Black
Supported Host
Interfaces
USB, RS232, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
Electronic Article
Surveillance
Compatible with Checkpoint EAS deactivation
system
User Indicators Direct Decode Indicator, Good Decode LEDs, rear
view LEDs, beeper (adjustable tone and volume)
Performance Characteristics
Light Source Aiming Pattern: circular 617nm amber LED
Illumination (2) 660nm red LEDs
Imager Field of View 36.1° H x 22.6° V nominal
Image Sensor 1280 x 800 pixels
Minimum Print
Contrast
15% minimum reflective difference
Skew Tolerance +/- 60°
Pitch Tolerance +/- 60°
Roll Tolerance 0° - 360°
Imaging Characteristics
Graphics Format
Support
Images can be exported as Bitmap, JPEG or TIFF
Image Quality 96PPI on an A4 document (DS4608-SR)
Environmental
Operating Temperature 32.0° to 122.0° F / 0.0° to 50.0° C
Storage Temperature -40.0° to 158.0° F / -40.0° to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at
6.0 ft./1.8 m to concrete
Tumble Specification Designed to withstand 2,000 tumbles in
1.5 ft./0.5 m tumbler
Environmental Sealing IP52
Electrostatic Discharge
(ESD)
ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct,
+/-8 KV Indirect
Ambient Light
Immunity
0 to 10,000 foot candles/0 to 107,000 Lux
